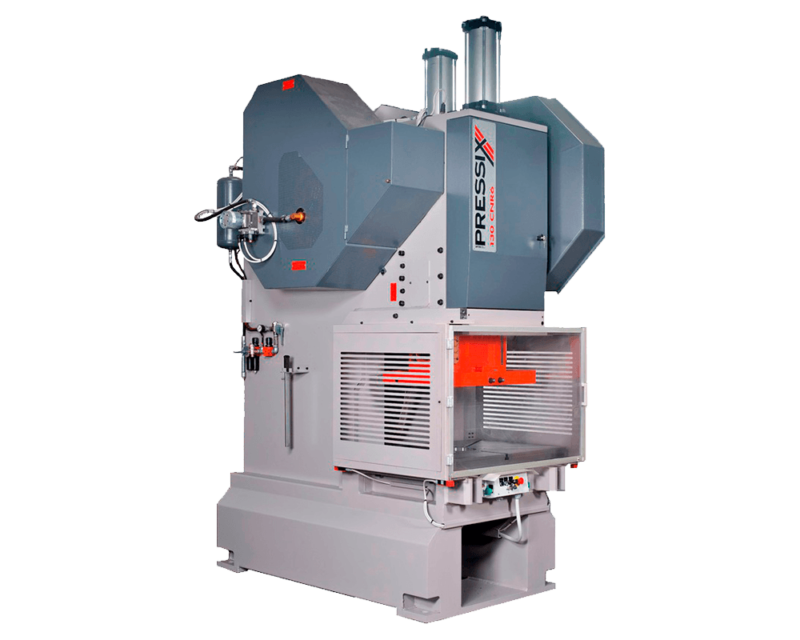

Back geared presses 130 CNR6

CNR6 Series: back geared presses
Main features: slide with 6 bronze guideways, automatic and centralized lubrication, hydraulic safety, pneumatic clutch-brake group, adjustable stroke length with toothed ring and pneumatically controlled, balancing cylinders, motorized slide adjustment.

FORCEkN1.300
NOMINAL SPEEDSpm48
FIXED SPEEDSpm60
VARIABLE SPEEDSpm27 - 80
STROKE LENGTHmm13 - 160
SLIDE ADJUSTMENTmm110
PRESS SHUTHEIGHTmm430
BOLSTER AREAmm765 x 1.200
BOLSTER HOLEmm165
SLIDE AREAmm550 x 800
SLIDE HOLEmm60
THROAT DEPTHmm405
POWERkW15
APPROXIMATE WEIGHTkg13.000
OVERALL DIMENSIONS(LxPxH) mm1.780 - 2.540 - 3.460
